ST-63 fully automatic activated carbon ignition point tester is
suitable for measuring the ignition point of activated carbon. It
is designed and manufactured in accordance with the standard
GB/T7702.9 "Test Methods for Coal Granular Activated Carbon -
Determination of ignition point" and GBT 20450-2006. The fully automatic activated carbon ignition point tester
software comes with a database function, and the temperature points
corresponding to each time point are automatically recorded during
the experimental process. Users can analyze the ignition point
characteristics of the current experimental activated carbon after
the experiment.
Working principle: automatically controls and describes the
determination of the reference ignition point of granular activated
carbon in flowing air. automatically and accurately obtains the
ignition point, visually displays the time temperature curve and
results of the heating process, and prints the curve and
experimental results .software of this instrument saves all experimental data.
Standard:GB/T7702.9 ASTM D3466 JIS K1474

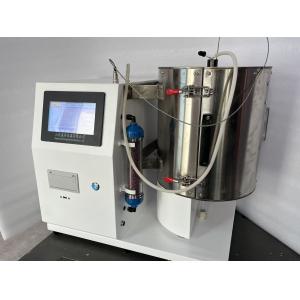

ASTM D3466 Automatic activated carbon ignition point tester
activated carbon ignition point tester
Main technical parameters:
●Control method: digital tube control and computer operation
●Temperature measurement range: room temperature -800 ℃
●Thermocouple accuracy: furnace temperature
●thermocouple: Class A sample thermocouple: Class 0.5
Temperature resolution: 1 ℃
● Experimental time: Automatically judge the results and stop the
experiment automatically
● Heating rate: about 10 ℃/min before 150 ℃; After 150 ℃, 2 ℃ -3
℃/min
● Fire point: automatically calculates the fire point
● Drawing curves: automatically draws experimental curves
●Carbon layer height: 25mm ± 1mm
●Burning tube: National standard quartz burning tube
●Flowmeter range: 0L/min-20L/min
●Quartz beads (high-temperature beads): diameter 3-4mm
● Database function: Yes (can export test process data)
●Printing method: mini Thermal printer
● Overall power: ＜ 2000W
●Voltage: AC220V 50Hz
● Overall dimensions: (excluding computer) L * W * H 700mm * 430mm
* 580mm
Packing list
S/N | Name | Quantity | Unit | Remarks |
1 | Host | 1 | set | |
2 | Quartz burning tube | 1 | piece | |
3 | Quartz particles | | | In host |
4 | Power cord | 1 | piece | |
5 | Fuse tube | 1 | piece | |
6 | Instructions | 1 | copy | |
7 | Certificate warranty card | 1 | copy | |
8 | | | | |
| | | | |
Shandong Shengtai Instrument Co., Ltd. provides the following
quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, comply with
national quality standards, and have the manufacturer's certificate
of conformity;
----The materials and main components provided meet the technical
requirements specified in the technical documentation;
----The warranty period for the entire equipment is one year
(excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument
quality issues that occur during the warranty period. Due to the
user's responsibility for causing equipment malfunction, we are
responsible for maintenance and reasonable charges.
----Lifetime discounted supply of components for equipment, and
lifelong maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs
maintenance and technical services, we will only charge a cost fee.
