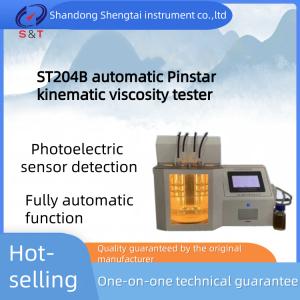

ST204B Automatic Pinstar Kinematic Viscosity Tester for
Pharmaceutical Testing with Automatic Constant Temperature Function
ST204B automatic Pinstar kinematic viscosity tester is suitable for
the design and manufacture of viscosity measurement method based on
general principle 0633 of Chinese Pharmacopoeia in 2020 and
<911> VISCOSITY-CAPILLARY VISCOMETER METHODS. This method
adopts relative method to measure the time required for a certain
volume of liquid to pass through the capillary under the action of
gravity, so as to obtain the kinematic viscosity of the fluid.
ST204B automatic drug kinematic viscometer has a series of
automatic functions, such as automatic constant temperature,
automatic extraction, automatic timing, automatic calculation,
automatic printing, automatic cleaning, automatic drying, etc. When
in use, the test can be completed by one sample injection and
clicking start.
Main technical indexes
Compliance standard: General Rule 0633 of Chinese Pharmacopoeia in
2020
● Temperature measurement range: room temperature - 100 ℃ (high
temperature can be customized to 150 ℃ or low temperature 0 ℃);
● Temperature control accuracy: 0.1 ℃ (0.01 ℃ can be customized)
● Display mode: human inductive touch screen
● Operation process: put the sample into constant temperature,
detect, calculate, clean the viscosity tube, dry, print the report
automatically
● Viscosity tube clamp: made of 304 stainless steel, high and low
temperature resistant graphite sliding bearing device
● Measuring range: Pinot viscosity measuring range: 0.6-17000mm2/s
● Temperature control range: 0 ℃~100.0 ℃ (high temperature can be
customized to 150 ℃)
● Temperature control accuracy: 0.1 ℃
● Timing range: 0.0s~999.9s;
● Timing accuracy: no more than ± 0.01% for 60min;
● Detection method: photoelectric sensor detection
● Result output: at the same time, it can be equipped with U disk
output function, and output to PC terminal for long-term storage
● Remote upgrade: with TCP network transmission function, software
remote upgrade can be carried out later
● Account management: the account is managed by layers, and the
main account and sub-account can be set with three-level management
authority
● Account extension: audit tracking function (optional)
● Data storage: U disk data export function
● Data sharing: can be accessed into the group company's limis
system (optional)
● Input extension: select barcode gun to scan and input sample
information (optional)
● Printer: equipped with micro printer
● Power consumption of the whole machine: not more than 2000W.
● Working power supply: AC220V ± 10%; 50Hz
● Size and weight: 450 * 380 * 550mm 38kg
| Methods | The viscosity was determined according to general rule 0633 of 2020
Chinese Pharmacopoeia |
| General temperature control range | room temperature ~ 100.0℃(High temperature to 150 ℃ or low
temperature to 0 ℃ can be customized) |
| Temperature control accuracy | ±0.1℃; (0.01 ℃ can be customized) |
| Timing range | 0.0s ~ 999.9s; |
| Timing accuracy | 60min no more than ±0.01% |
| Measuring range | Pinot viscosity measuring range: 0.6-17000mm2/s |
| Service environment | Ambient temperature 10℃ ~ 35℃, relative humidity ≤ 85%; |
| Temperature sensor | Pt100 platinum resistance |
| Rated power | 1800W |
| Instrument size: 380 * 450 * 550mm Weight: 38kg |
packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Ubbelohde special viscosity tube | 4 | piece | Comply with the pharmacopoeia |
| 3 | Special viscometer support | 1 | set | |
| 4 | Cleaning fluid conduit | 2 | piece | |
| 5 | Electric attractor | 1 | set | |
| 6 | power cord | 1 | piece | |
| 7 | Certificate warranty card | 1 | copy | |
| 8 | instructions | 1 | copy | |
| 9 | Printing paper | 2 | piece | |
