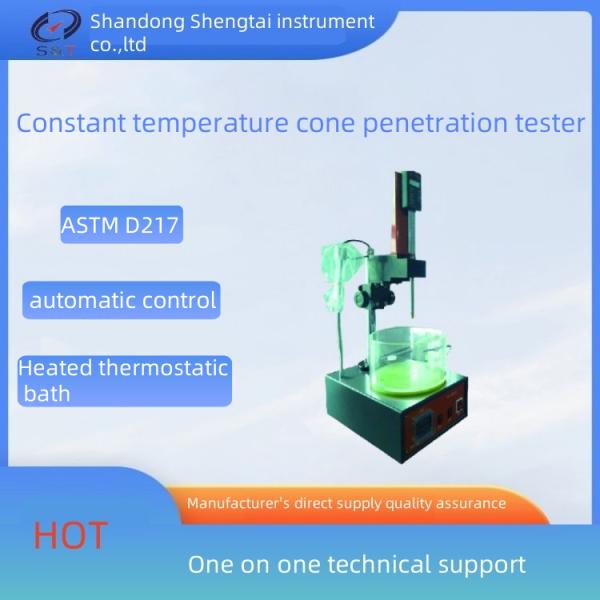

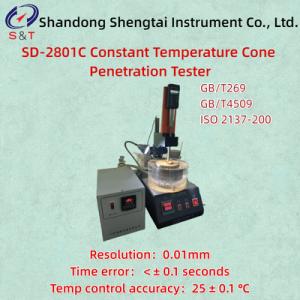

Lubricating And Petroleum Grease Constant Temperature Cone Penetration Test SD-2801C

SD2801C constant temperature needle cone penetration meter is designed and manufactured according to the technical requirements and related regulations of GB/T269 "Determination of the cone penetration of grease and petroleum grease" and GB/T4509 standard of the People's Republic of China. It is mainly used for testing the needle penetration of asphalt and lubricating grease (or petroleum grease).

Meet Standard: ASTM D217 ASTM D1403 ASTM D 5

Standard Lubricating Grease Cone Penetration Tester SD2801A

Cone Penetrometer ASTM D217Lubricating Grease Cone Penetration Tester

ASTM D217Lubricating Grease Cone Penetration Tester

Lab ASTM D217Lubricating Grease Cone Penetration Testing Equipment

Standard Penetration Test ASTM D217 Dynamic Grease Cone Penetrometer

I. Main technical features

1, the use of digital display to display the taper value, intuitive and eye-grabbing.

2, With lifting frame coarse adjustment, fine adjustment function, easy adjustment, accurate needle.

3, Equipped with heating constant temperature bath, water bath temperature automatic control, high cost performance instrument.

II. Main technical parameters and indicators

1, measuring range: 0 ~ 700 taper degree (digital display table 0-70mm);

2, cone entry time control device:;

Time can be set according to their own needs, the time error is less than ±0.1 seconds;

3, the resolution of 0.01㎜;

4. Needle insertion accuracy: ±1 cone insertion degree;

5, temperature range: 10 ~ 50 degrees (with semiconductor cold circulation device, can be heated or refrigerated);

6, temperature control accuracy: 25±0.1℃;

7, temperature control mode: high precision digital temperature controller, can be constant temperature to the standard requirements of 25 degrees;

8, standard cone: 102.5±0.05g, in line with the specifications of the national standard GB/T269 ASTM D217;

9, lifting bracket: coarse adjustment, fine adjustment of double lifting adjustment mechanism, easy to tip alignment sample plane;

10, others: equipped with cold light source, easy to use and operation.
