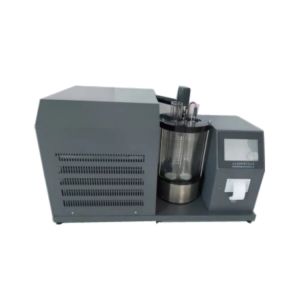

Kinematic Viscosity Tester SH112E Low temperature petroleum kinematic viscometer -40 ℃ -60 ℃ arbitrary setting

SH112E low temperature petroleum kinematic viscometer conforms to the national standard GB/T265 "Petroleum product kinematic viscosity measurement method and dynamic viscosity calculation method" standard measurement requirements.

ASTM D445 Petroleum Automatic Digital Low Temperature Cold Kinematic Viscometer

Low Temperature Kinematic Viscometer

Digital Refrigerated ASTM D445 Low Temperature Kinematic Viscometer Bath

Laboratory Low Temperature Viscosity Testing Kinematic Viscometer Apparatus ASTM D445 Can be placed at the same time two viscosity and experiment.

The main features are as follows:

1. The constant temperature bath is double-layer dewar bottle with low temperature. The temperature distribution in the bath is even and the temperature control effect is good.

2, the instrument adopts precision digital temperature controller to control the temperature in the bathtub, the executive components are solid-state relay SSR, with temperature control accuracy and accuracy, no contact, no noise, no spark, fast action, long life and other characteristics.

3, Capillary card adopts three point vertical type, flexible and convenient operation, reliable clamping.

4, standard micro printer automatic calculation automatic printing

Laser printer interface, can be linked to HP1108 laser printer (optional)

★6, with date password setting function.

★7, with TCP network transmission function (optional)

★8, can be uploaded and connected to LIMS system (optional)

Main technical indicators:

Adopt color LCD large screen Chinese display, no marker button, temperature measurement using precision platinum resistance PT100, 0 ~ 100℃ arbitrary setting.

Automatic calculation of viscosity value.

Temperature control point: -40℃-60℃ Temperature control precision: + 0.1℃;

Display mode: digital display;

Stopwatch timing: 0.00seconds 9999 seconds;

Heating power: 750W;

Power supply: AC 220V±10%, 50Hz ±5%;

Ambient temperature: 5℃-40℃;

Ambient humidity: < 85%;

Dimensions: 530mm×460mm×870mm;

Weight: 58Kg.

Customer supplies are required: water or alcohol.

Strictly according to national standards, the viscosity tube test before the need to clean the following reagents: solvent oil or petroleum .
